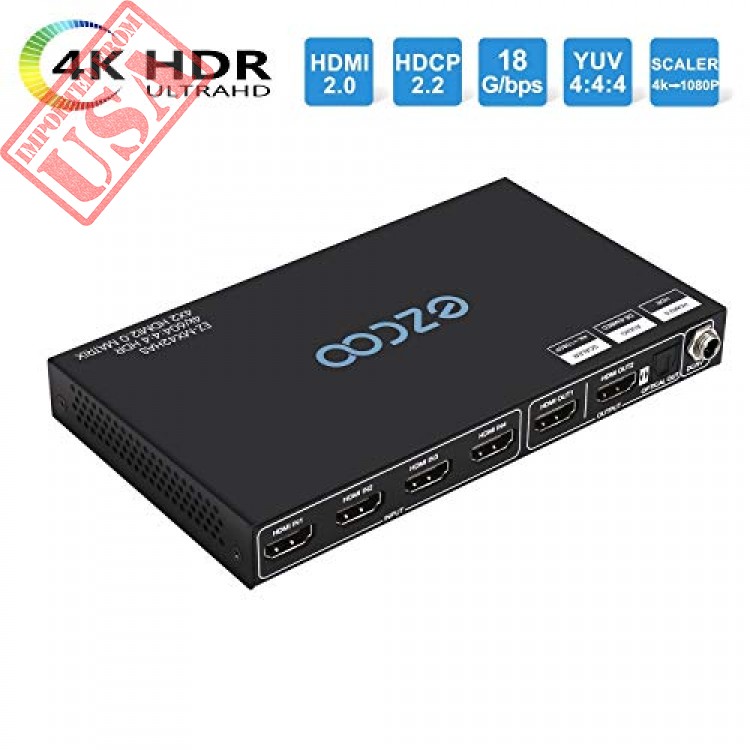

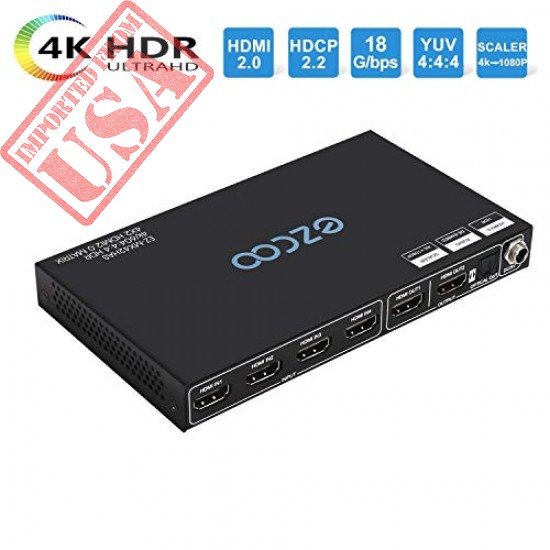

EZCOO 4K HDMI 2.0 Matrix 4K 60Hz 18Gbps HDR Dolby Vision HDCP 2.2, Unique HDMI Matrix Scaler Output 4K,HDMI Switcher Matrix Made in USA

Delivery: 3 to 4 WEEKS.





EZCOO 4K HDMI 2.0 Matrix 4x2 18g 4K 60Hz 4:4:4 18Gbps HDR Dolby Vision HDCP 2.2, Unique HDMI Matrix Scaler Output 4K & 1080P Together,Digital SPDIF 5.1CH DE-embed,IR Remote,HDMI Switcher Matrix

INTRO

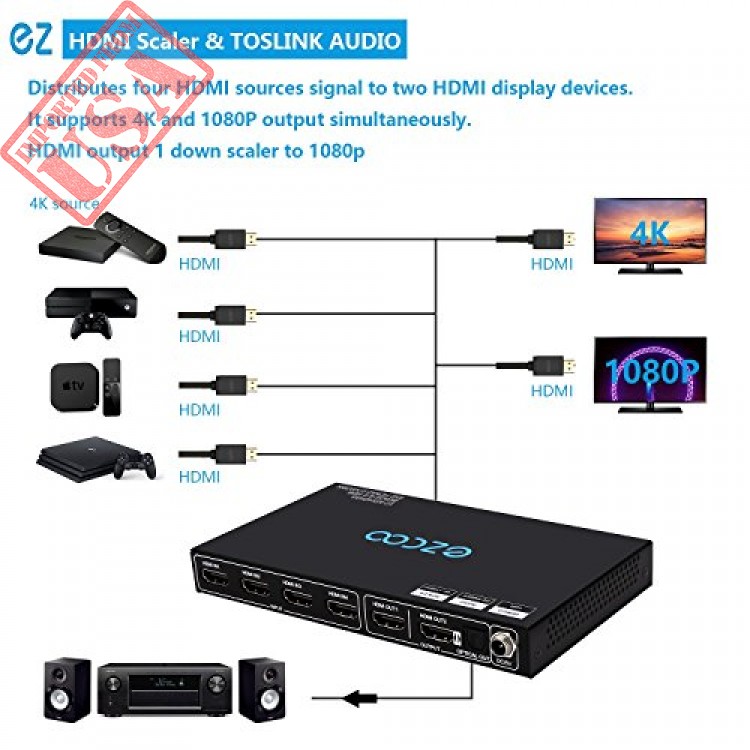

4K HDMI Matrix Switcher distributes four HDMI sources to two HDMI displays reliably. Especially support one 4K TV and one 1080P TV work together, due to HDMI output1 can down scaler 4K to 1080P . Please turn on 4K TV firstly when 4K & 1080p TV work together. Additional Audio DE-embed SPDIF Optical 5.1CH out offers hi-fi audio quality, works well without TV connection.

How to use SCALER button?
1. Please press SCALER button to BYPASS (LED indicator is off) firstly, then it can output HDMI source resolution only, such as 4K@60Hz 4:4:4.
2. Please press SCALER button to 4K/1080P(OUT1) (LED indicator is on), 4K down scalers to 1080P.

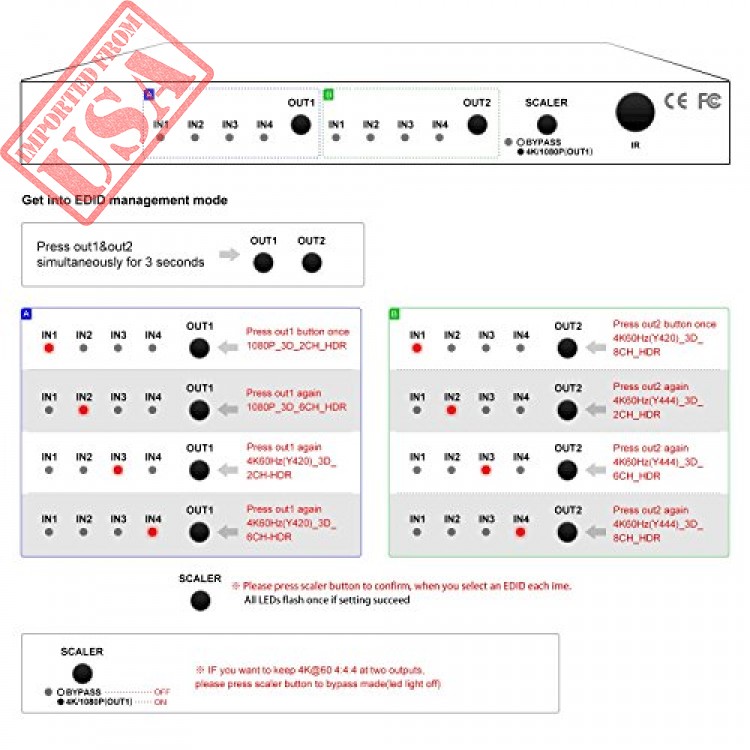

How to get HDMI 4K@60Hz 4:4:4?
The default EDID is copying matrix OUTPUT 2.
If you need 4K@60Hz 4:4:4 and 4K TV supports, press output1 and output2 button simultaneously for 3 seconds,go to EDID management, press OUTPUT 2 button the fourth time, it will copy OUTPUT 2`s EDID (4K@60Hz 4:4:4) to present input. Then press SCALER button to confirm.

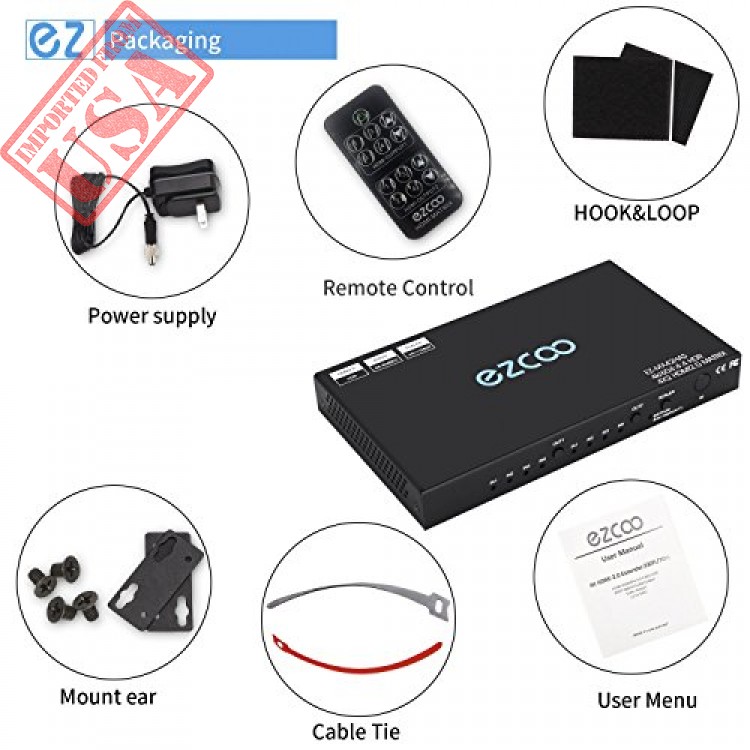

Package Contents
1x HDMI 2.0 Matrix 4x2
1x IR Remote
1x Power Adapter
2x Mounting Ear
1x Hook&Loop
1x User Manual
2x Reusable Cable Tie

Technical Information

HDMI videoHDMI 2.0,HDCP 2.2,4K@60Hz 4:4:4 18Gbps 8bit, HDR,/1080p/1080i,24/30/bit deep color
HDMI audioDolby Digital 7.1CH Audio,Dolby Atmos,Dolby TrueHD,DTS:X,DTS-HD Master
SPDIF portSupports Dolby Digital 5.1/DTS-HD Master Audio/Dolby-AC3/DSD/LPCM/PCM,SPDIF Optical 5.1CH out without TV connection.
HDMI InputHDMI 2.0 standard cable, ≤15m AWG26
HDMI OutputHDMI 2.0 standard cable, ≤25m AWG26
Max bandwidth600MHz, Max baud rate: 6Gbps
Power AdapterInput AC 100V-240V/ 50Hz,60Hz; Output DC 5V/2A
Dimension19x13.4x8.5cm
Weight0.58kg
Warm Tips
Please contact ezcoo@easycoolav.com freely.

Product Feature

【4K HDMI 2.0 18Gbps HDR Dolby Vision Switch HDCP 2.2】Unique HDMI Matrix outputs 4K & 1080P Simultaneously. HDMI Switch Matrix supports HDCP 2.2 HDMI 2.0 4K@60Hz 4:4:4 8bit HDR Dolby Vision & 4K@60Hz 4:2:2 10bit HDR10,HDR Dolby Vision.Extra SPDIF Optical 5.1CH Audio port. HDMI Down Scaler. Plug & Play.
【ATTENTION】1. Pls connect 1080p HDMI display to matrix OUT 1, connect 4K display to matrix OUT 2, matrix EDID copy OUT 2 prior. 2. To get proper EDID, pls TURN ON OUT 2 4K TV firstly,especially when 4K &1080p TV work together. 3. HDMI OUT 1 Down Scaler 4K to 1080p, does not support down scaler 4K HDR Dolby Vision. NOT UP SCALER. NOT AUTO SWITCH. Please check EDID Setting Guide on left hand carefully. High Competitve 18G hdmi matrix switch.
【Video & Audio】Supports HDMI 2.0 4K@60Hz 4:4:4 8bit,HDR Dolby Vision,HDCP2.2,HDMI OUT 1 play 4K or 1080p,ensure output HDMI signal smoothly; Multiple Smart EDID management for various demands;HDMI signal re-timing function, ensure stable 4K UHD HDMI quality; HDMI OUT audio formats of Dolby Digital 7.1CH,Dolby Atmos, DTS:X,Dolby TrueHD,DTS-HD Master,LPCM 2.1/ 5.1/ 7.1CH;HDMI Matrix with audio out; Audio DE-embed SPDIF Optical 5.1CH out,follow HDMI OUT 2,no need TV connection.

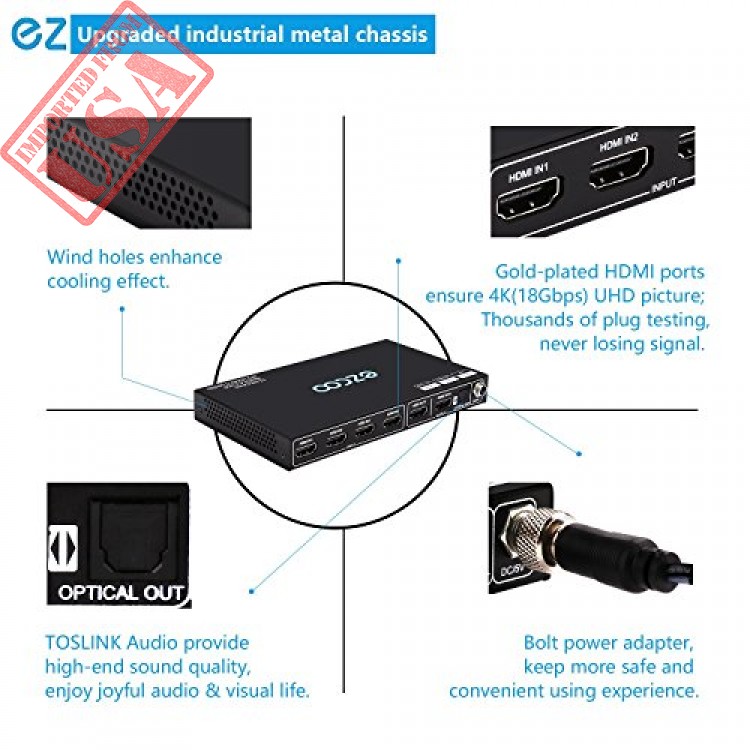

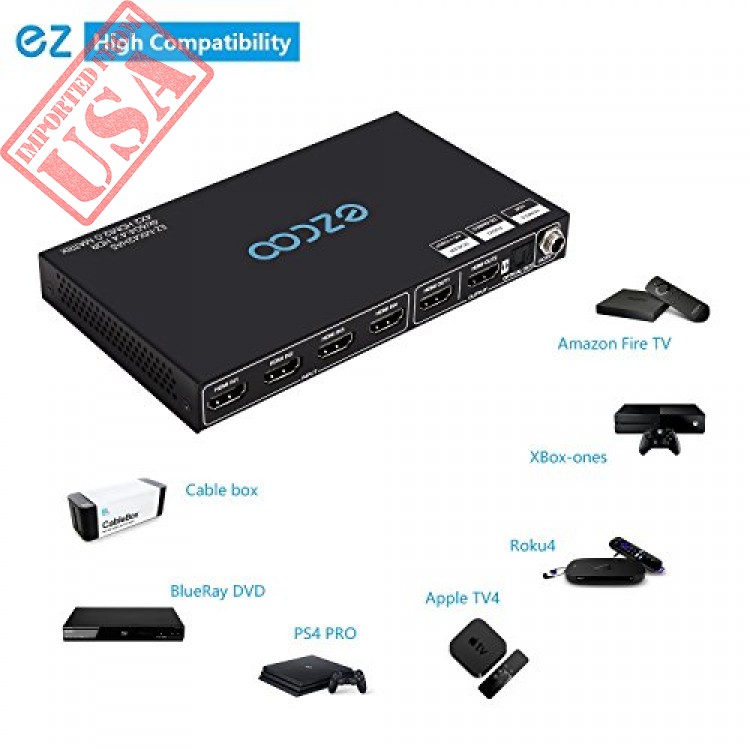

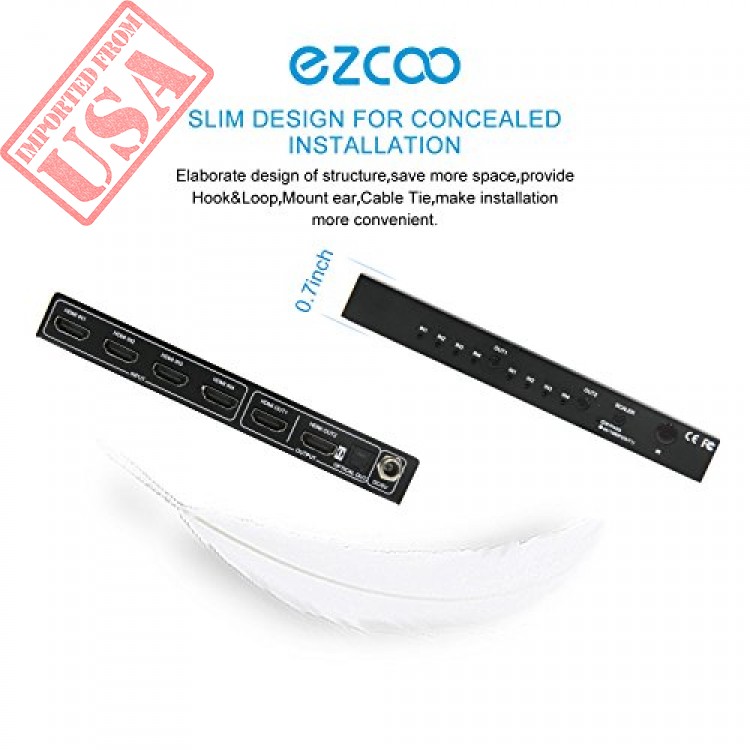

【High Compatibility】HDMI four input two output Matrix Switcher with high HDR compatibility & IR Remote & Panel control, the remote can turn on/off matrix and switch HDMI sources for each output works perfectly with Apple TV, Amazon Fire TV,PS3/PS4 Pro,X BoX series,Comcast,PC etc; Ideally for Home Theater,Seminar,Classrooms,Club,Gaming etc. Threaded power adapter to prevent power loss; Mounting ear,Hook & Loop for easy installation.
【EZCOO Warranty】10 years OEM factory competency; Most efficient technical support via ( ezcoo at easycoolav com ); On-line after-selling service. High value for money HDMI 4 in 2 out Matrix / 4K HDMI switch 4x2.

Product Information

Product Dimensions 8 x 37 x 64 inches
Product weight 1.3 pounds
Shipping pack Dimensions 30 x 55 x 80 inches
Shipping pack weight 1.3 pounds
BindingPersonal Computers
Manufacturer EZCOO
Model EZ-MX42HAS
Studio EZCOO
Product Group PC Accessory
Publisher EZCOO
Package Quantity 1
Part Number EZ-MX42HAS
Color 4K HDMI2.0 HDCP2.2 Matrix 4x2 Scaler SPDIF
MPN EZ-MX42HAS
EAN List 0657835104535
UPC List 657835104535
